Door Holdback Keepers

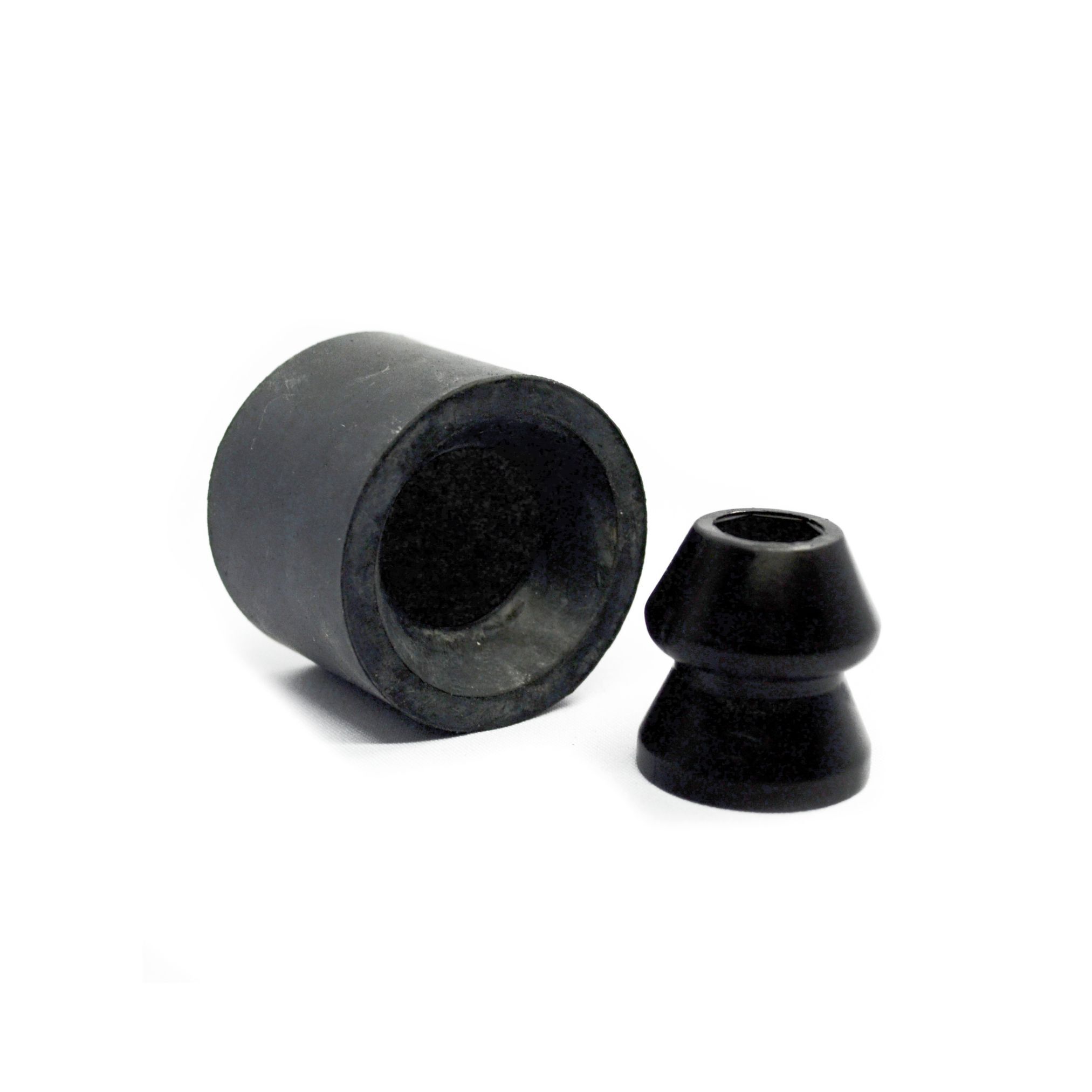

2-Piece, Black Rubber Door Holdback

  • 2-piece, male/female
  • Soft rubber receptacle with hard plastic insertion piece
  • Forces will vary depending on temperature range
  • Provides good shock absorbing qualities, giving near silent operation
  • Complete unit gives positive corrosion-free performance

Product Specifications

Part Number Material Finish Male Part Dim Female Part Dim Typical Insert Typical Extract Washer Hole Usable Temp Range Download
1-666-2-MB Rubber Black 1.00"L x 1.06" Diam. 1.38"L x 1.57" Diam. 59 lbs 66 lbs .25" Diam. –60º/–76º to +85º/185º
1-774-2-MB Rubber Black 1.00"L x 1.06" Diam. 1.31"L x 1.57" Diam. 25 lbs 26 lbs .25" Diam. –20º/–4º to +100º/212º
1-775-2-MB Rubber Black 1.00"L x 1.06" Diam. 1.38"L x 1.57" Diam. 25 lbs 26 lbs Tapped 6mm –20º/–4º to +100º/212º
1-776-2-MB Rubber Black 1.00"L x 1.06" Diam. 1.38"L x 1.57" Diam. 19 lbs 20 lbs .25" Diam. –25º/–13º to +50º/122º
1-777-2-MB Rubber Black 1.00"L x 1.06" Diam. 1.38"L x 1.57" Diam. 59 lbs 66 lbs Tapped 6mm –60º/–76º to +85º/185º
1-664-2-MB Rubber Black 6.6 lbs 22lbs .25" Diam. –20º/–4º to +100º/212º
