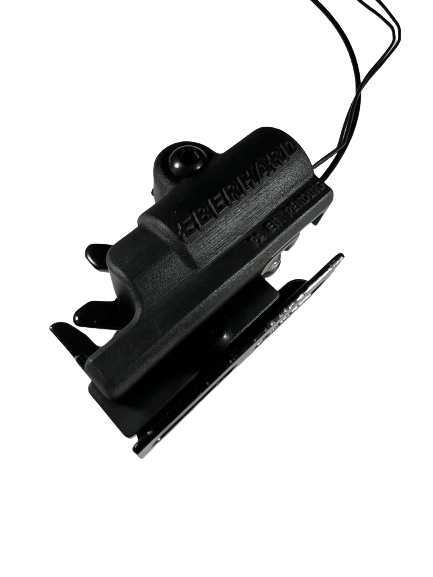

Load N Lock Series Integral ES Rotary Latch

ES_rotary_image

ES_integral_rotary

Load N Lock Series Integral ES Rotary Latch

Low 3.5 amp draw activation
Thermal overload protection
Left/right or inline release orientation
4 lb. spring force to open latch
Open/close latch switch sensor (optional)
RoHS compliant

Patent Pending

Part Number	Material	Finish	Sizes	Handed	Mounting	Striker Sizes	Forces lbs	Stages	Download
LNL-77E-41750	Steel	Black e-coat	3.088"L x 1.534"W x 1.712"H	Right	Thru hole	3/8	4	Single
LNL-77E-41751	Steel	Black e-coat	3.088"L x 1.534"W x 1.712"H	Left	Thru hole	3/8	4	Single
