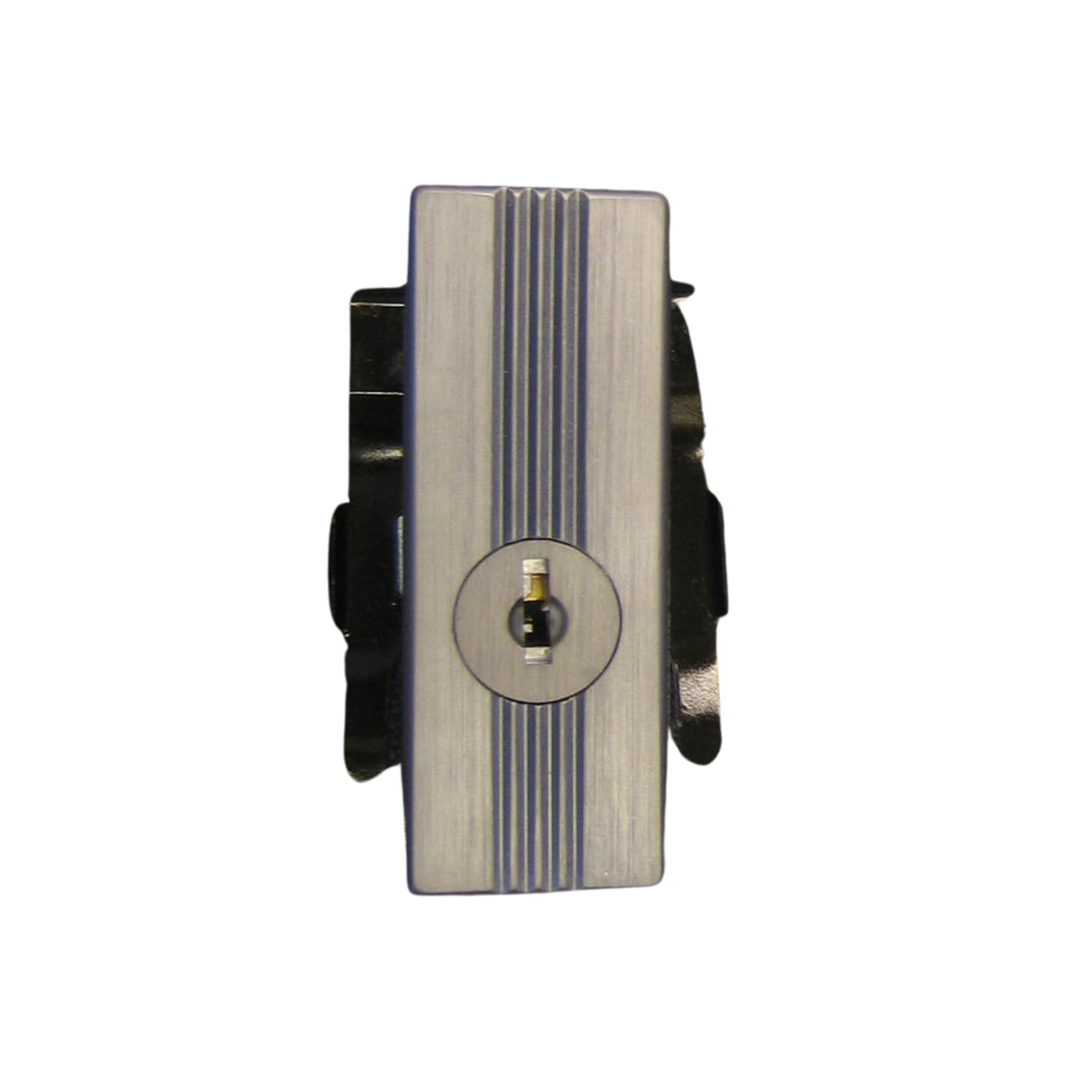

15867/15868 Panel Enclosure Lock

Electrical panel box applications
Self latching - latch bolt retracted by lifting up on lift lever except when lever is locked down by key
Easy installation with steel mounting clip
Pressure cast lift lever, steel case, and zinc plated standard reversible for right or left hand door
Master keyable
200 combinations available
Locking and non-locking versions available

Part Number	Material	Finish	Sizes	Locking	Download
15867	Steel	Zinc	1"L x 0.80"W x 2.70"H	Key
15868	Steel	Zinc	1"L x 0.80"W x 2.70"H	No
