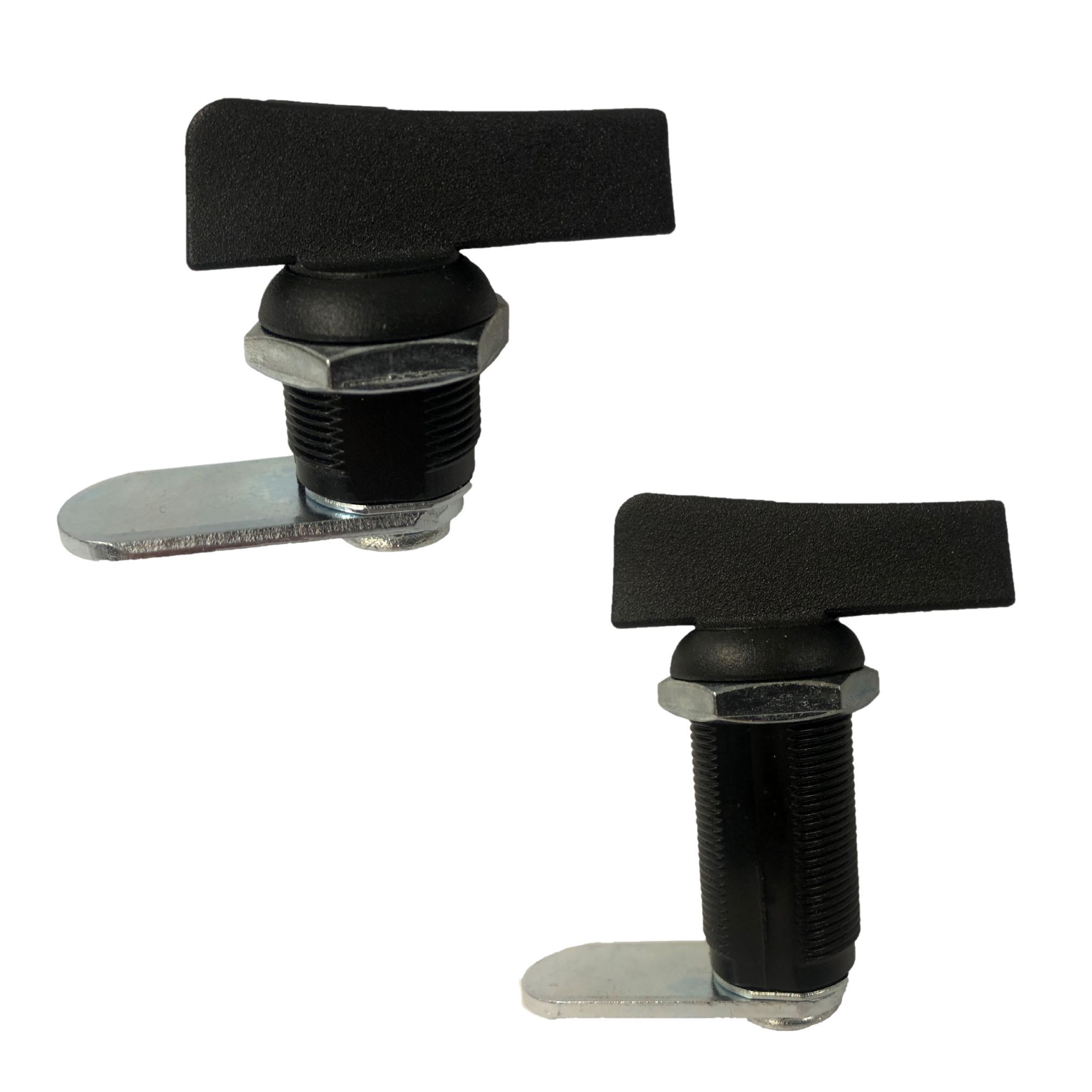

522 Series Quarter Turn Latch

  • Knob style head
  • Various sizes available based on panel thickness
  • 90 degree rotation with indicator
  • Screw on cam design
  • Max panel thickness range: .33” to 1.32”
  • Grip range: .65” to 1.63”
  • Rated to IP 67 when installed with the supplied gasket

Product Specifications

Part Number Material Finish Extras Head Style Max Panel Thickness Cam Style Rotation Download
15-522-42 Die Cast Black Gasket and hex nut Knob 0.33" Straight 90˚
21-522-42 Die Cast Black Gasket and hex nut Knob 0.58" Straight 90˚
28-522-42 Die Cast Black Gasket and hex nut Knob 0.83" Straight 90˚
34-522-42 Die Cast Black Gasket and hex nut Knob 1.08" Straight 90˚
40-522-42 Die Cast Black Gasket and hex nut Knob 1.32" Straight 90˚
