Rotary Latches and Strikers

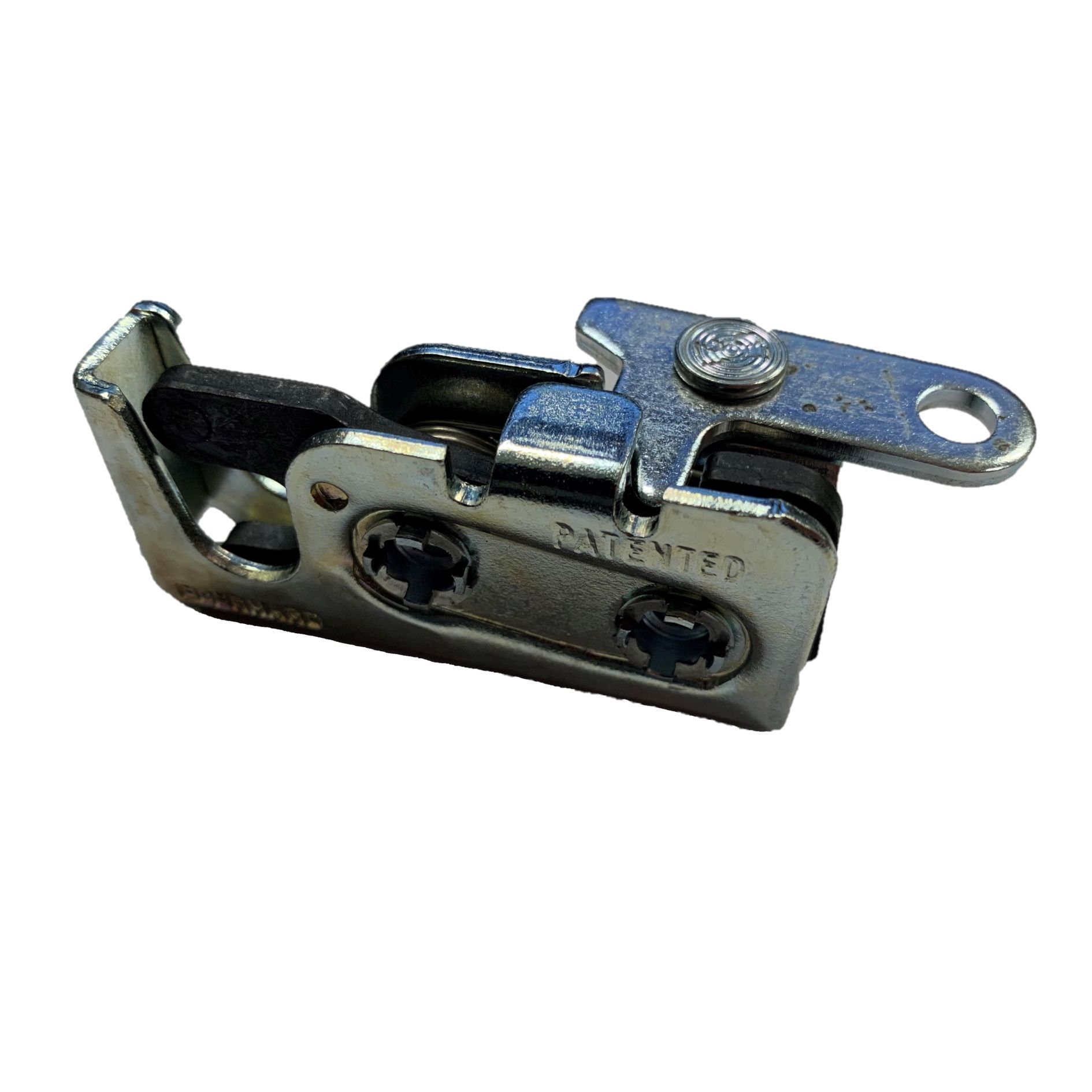

1-240 Series Mini Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Single, horizontal with bend actuator for remote operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Material Finish Sizes Handed FMVSS 206 Rated Stages Striker Sizes Mounting Download
1-240-L-54 Steel Zinc 2.50"L x .58"W x 1.13"H Left No Dual .38" 1/4" x 20 threaded holes
1-240-R-54 Steel Zinc 2.50"L x .58"W x 1.13"H Right No Dual .38" 1/4" x 20 threaded holes
