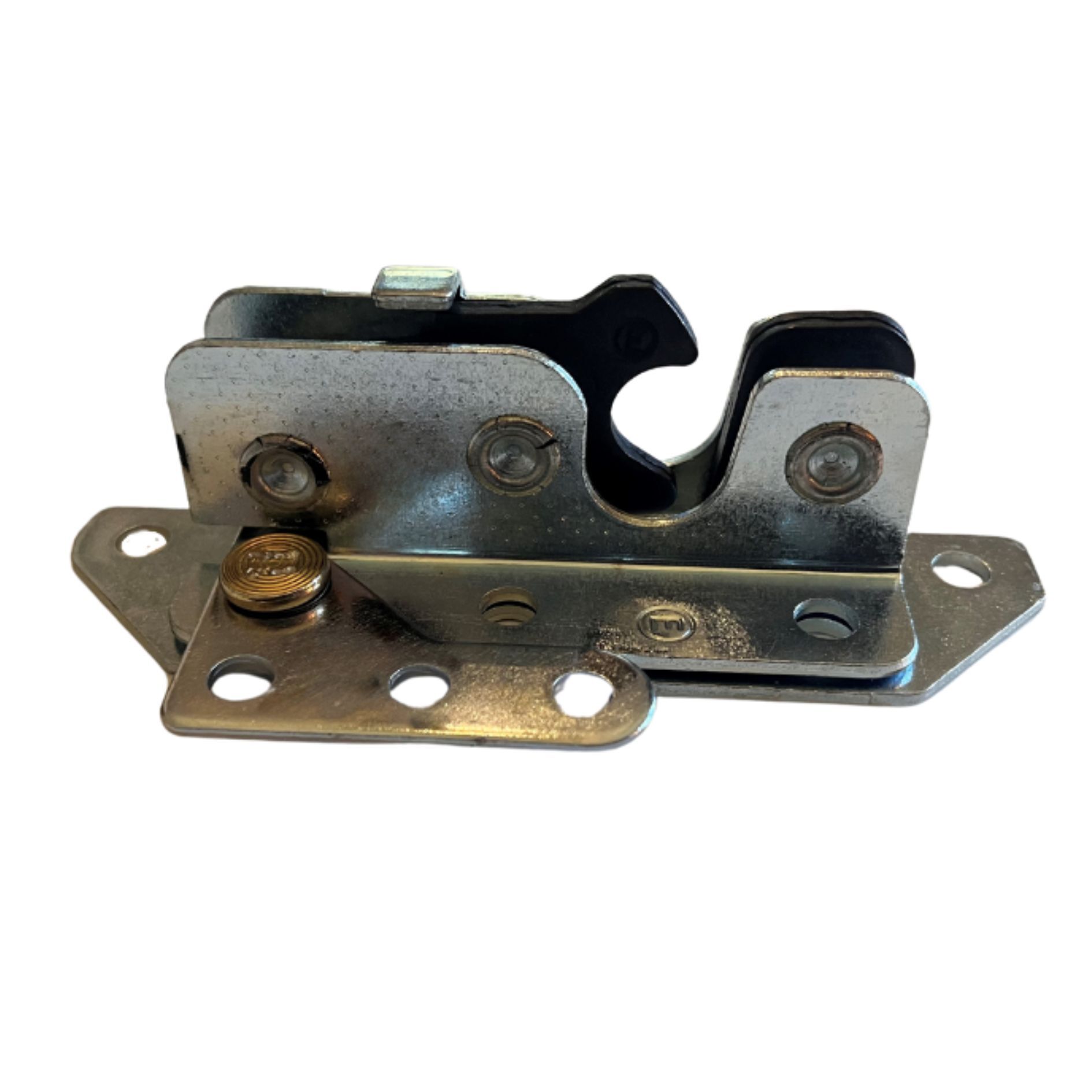

1-300 Series Large Rotary Latch

1-300 Series Large Rotary Latch

Right or left hand
Dual stage latching
Integral mounting bracket
Multi-actuator for spring attachment and remote operations
Rated to a max load of 750lbs
To be used with a .55" diameter striker pin

Part Number	Material	Finish	Handed	Sizes	FMVSS 206 Rated	Stages	Striker Sizes	Mounting	Download
1-300-R-25	Steel	Zinc	Right	3.56"L x 1.43"W x 1.52"H	No	Dual	.55"	Mounting bracket
1-300-L-25	Steel	Zinc	Left	3.56"L x 1.43"W x 1.52"H	No	Dual	.55"	Mounting bracket
