Rotary Latches and Strikers

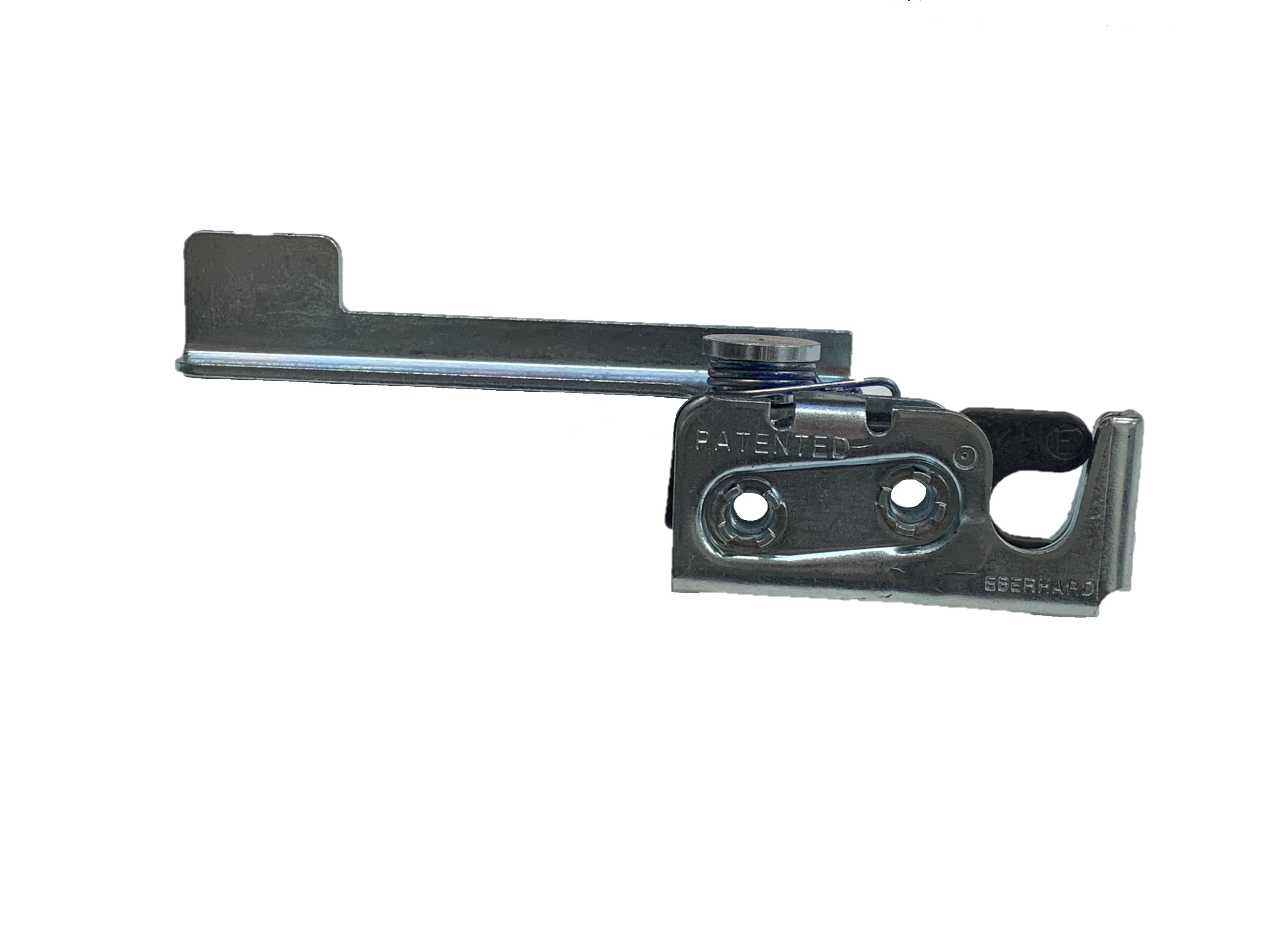

12-240 Series Large Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Single, horizontal lever arm actuator for hand operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Material Finish Handed Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Extras Download
12-240-L-24 Steel Zinc Left 2.50"L x .57"W x 1.13"H No Dual .38" 1/4" x 20 threaded holes With lever for hand actuation
12-240-R-24 Steel Zinc Right 2.50"L x .57"W x 1.13"H No Dual .38" 1/4" x 20 threaded holes With lever for hand actuation
