Rotary Latches and Strikers

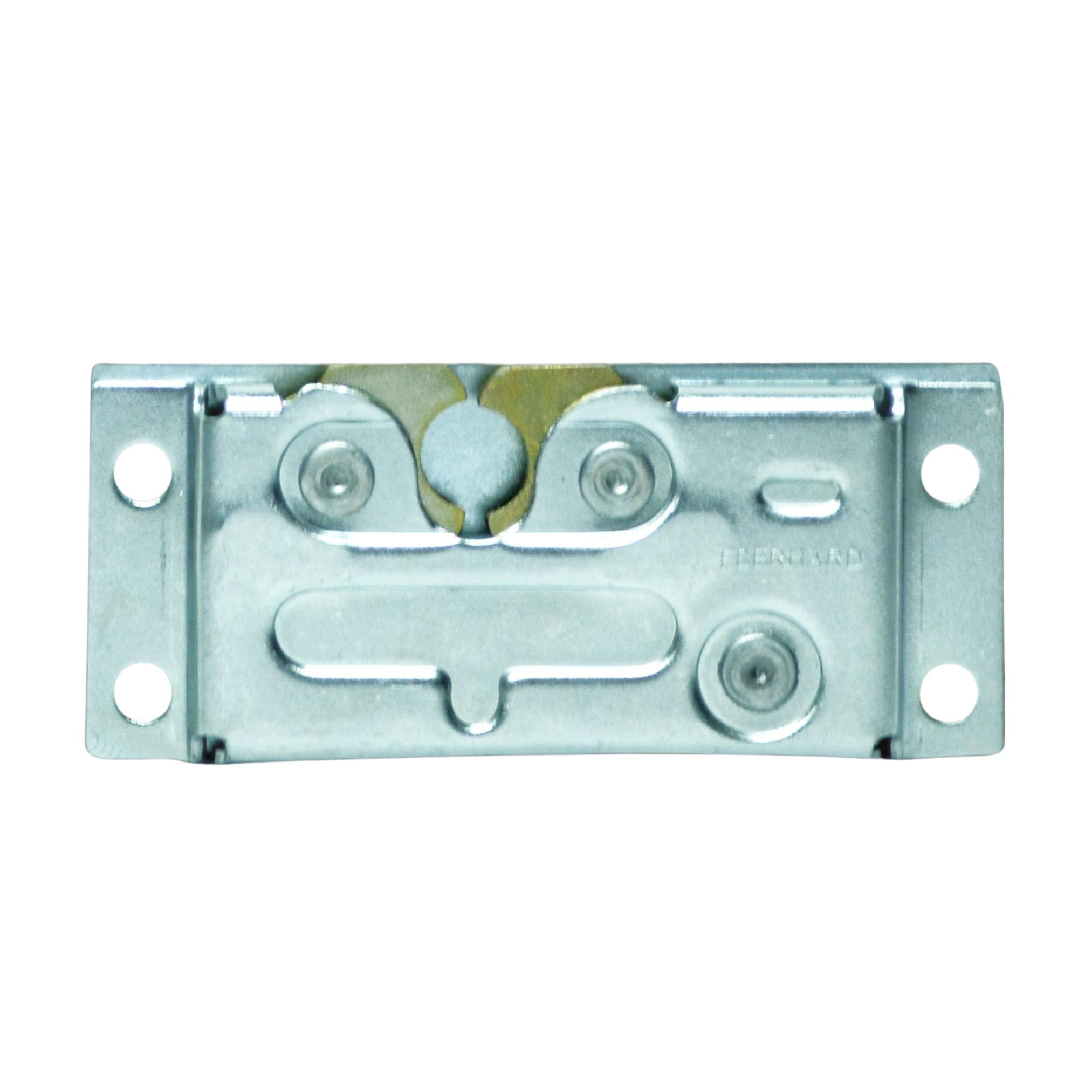

19400 Series Large Rotary Latch

  • Right or left hand
  • Dual stage latching
  • To be used with a .62" diameter striker pin
  • Rated to a max load of 750lbs
  • To be used with our 19400 series mating actuators
  • Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker

Product Variations

Part Number Handed Material Finish Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Download
19400-L-BG Left Steel Zinc 5.25"L x .72"W x 2.30"H Yes Dual .62" .33" thru holes

2D      3D
19400-R-BG Right Steel Zinc 5.25"L x .72"W x 2.30"H Yes Dual .62" .33" thru holes
2D    3D
