Rotary Latches and Strikers

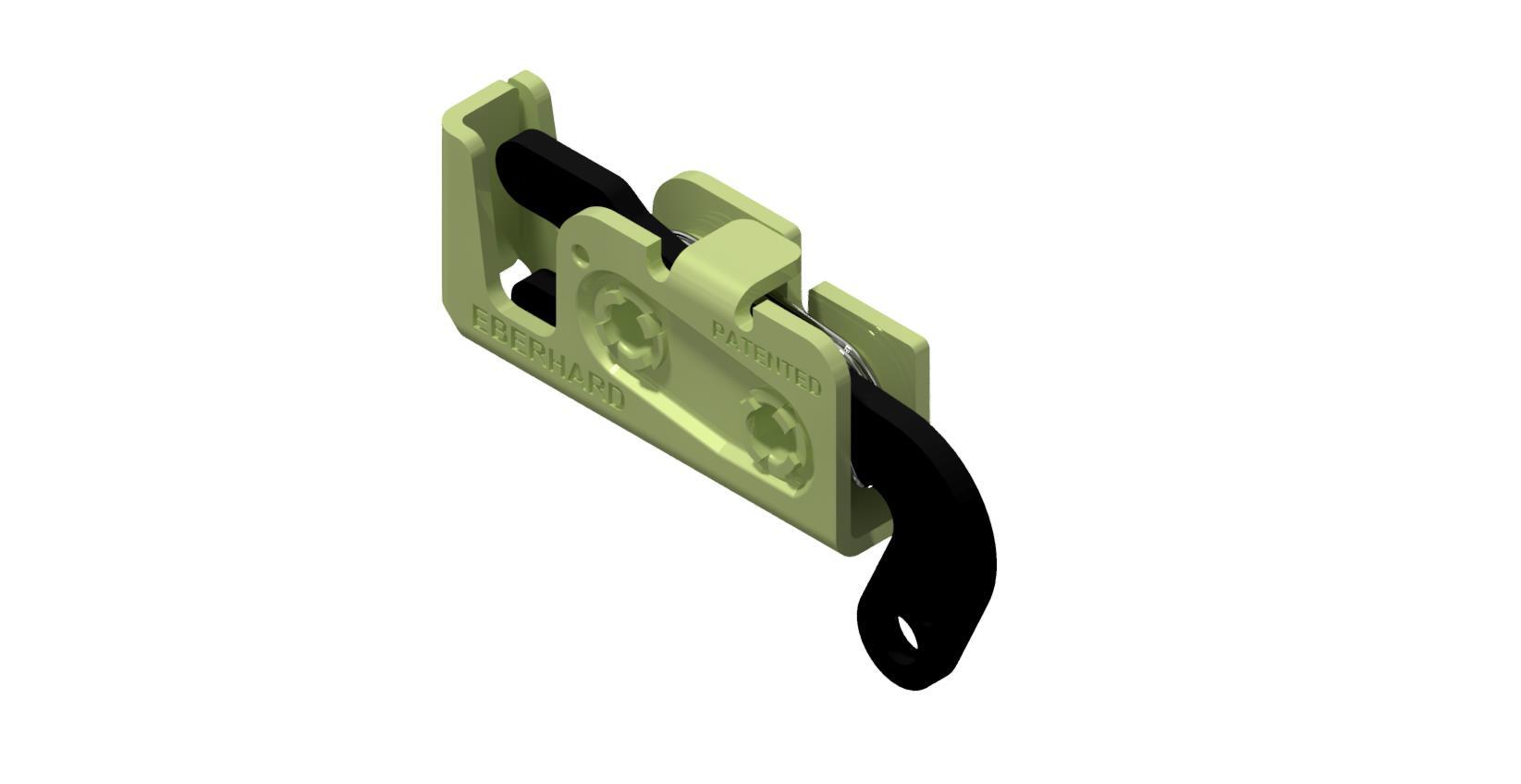

2-241 Series Mini Rotary Latch

  • Right or left hand
  • Single stage latching
  • Single, special bent actuator for remote operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Material Finish Handed Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Download
2-241-NTL-54 Steel Zinc Left 2.50"L x .57"W x 1.13"H No Single .38" 1/4" thru holes
2-241-NTR-54 Steel Zinc Right 2.50"L x .57"W x 1.13"H No Single .38" 1/4" thru holes
