Rotary Latches and Strikers

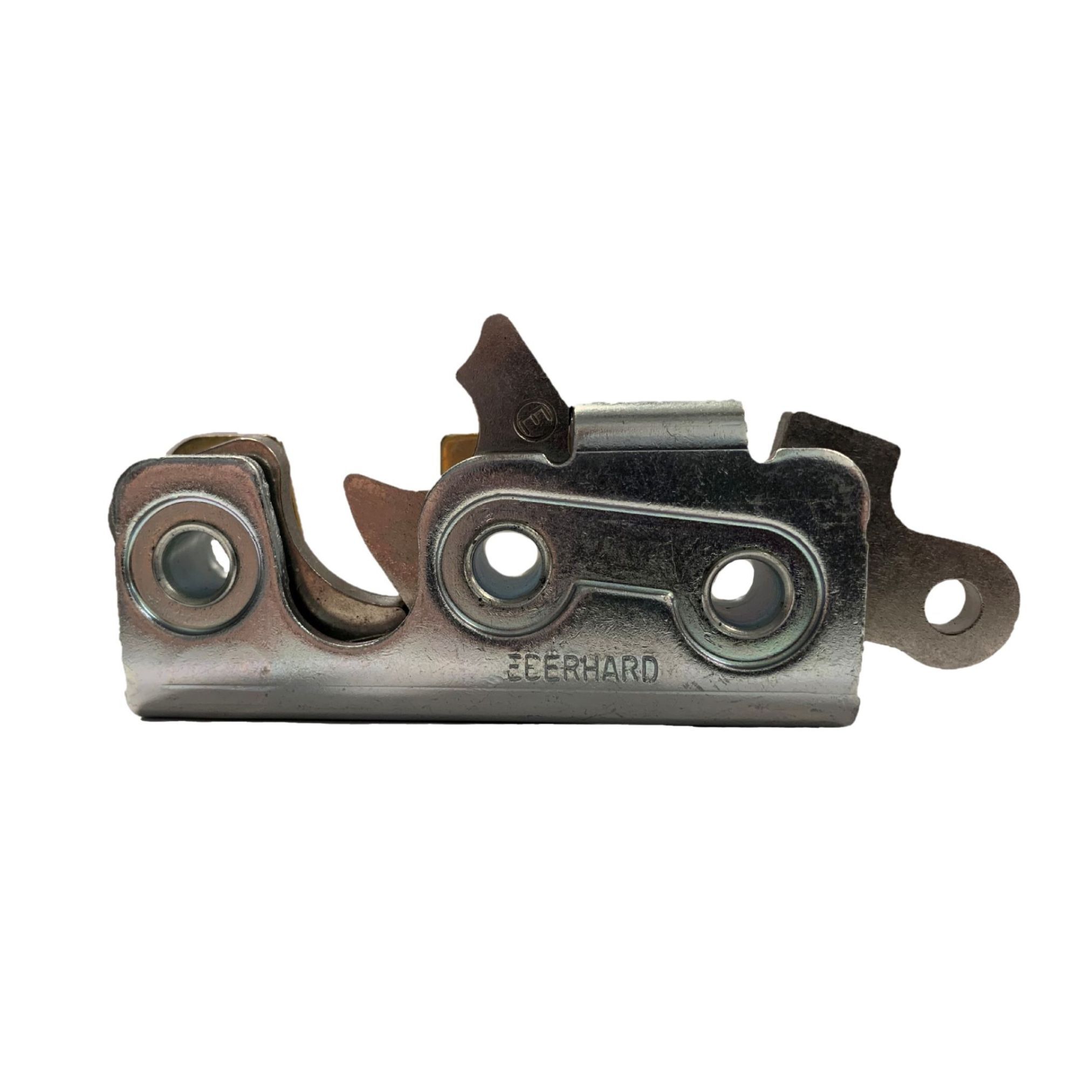

20X-17400 Series Large Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Multiple material/finish options
  • Single, vertical actuator for remote operation
  • Rated to a max load of 750lbs
  • To be used with a .55" diameter striker pin

Product Specifications

Part Number Material Finish Handed Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Download
20X-17400-L-24 Steel Zinc Left 3.63"L x .77"W x 1.62"H No Dual .55" .32" thru holes
20X-17400-R-24 Steel Zinc Right 3.63"L x .77"W x 1.62"H No Dual .55" .32" thru holes
20X-17400-SSR-BG Stainless Steel Passivated Right 3.63"L x .77"W x 1.62"H No Dual .55" .32" thru holes
