Rotary Latches and Strikers

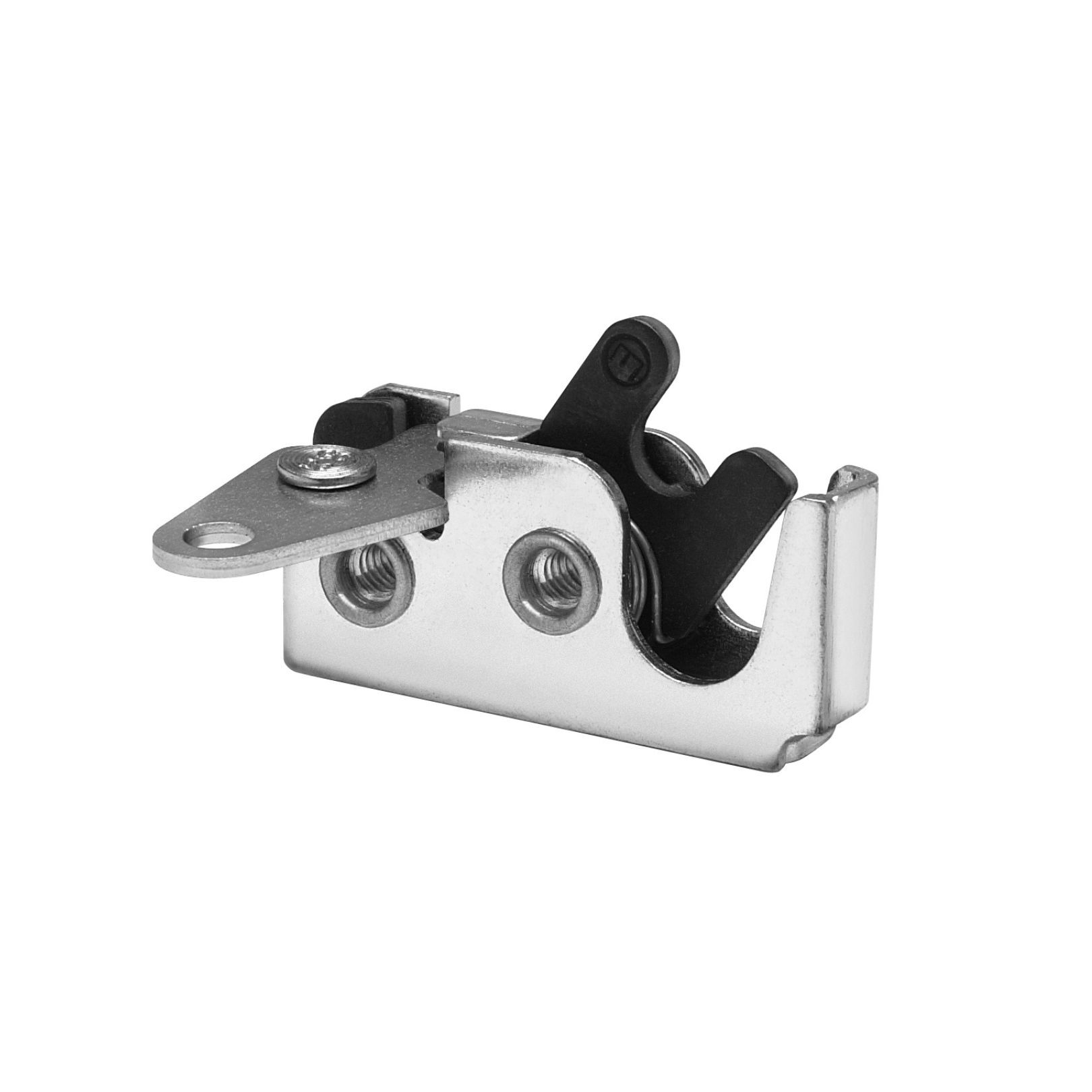

240 Series Mini Rotary Latch

  • Right or left hand
  • Dual stage latching
  • Single, horizontal actuator for remote operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Material Finish Handed Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Download
240-R-54 Steel Zinc Right 2.50"L x .57"W x 1.13"H No Dual .38" 1/4" x 20 threaded holes
240-L-54 Steel Zinc Left 2.50"L x .57"W x 1.13"H No Dual .38" 1/4" x 20 threaded holes
