Rotary Latches and Strikers

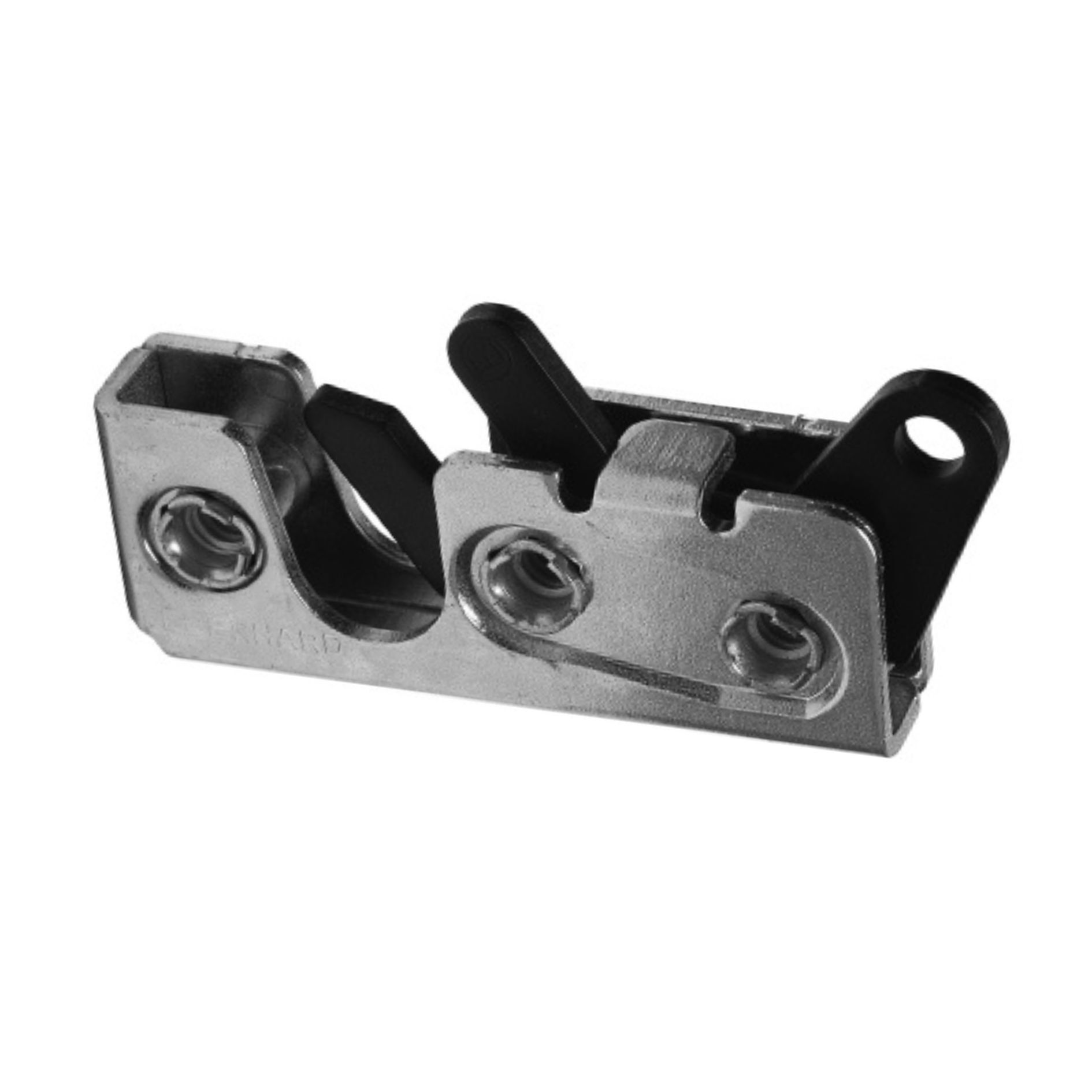

8-247 Series Mini Rotary Latch

  • Right or left hand
  • Single stage latching
  • Single, vertical actuator for remote operation
  • Heavy return spring
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Material Finish Handed Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Extras Download
8-247-BR-54 Steel Zinc Right 2.96"L x .58"W x 1.12"H No Single .38" 1/4" x 20 threaded holes With heavy spring
8-247-BL-54 Steel Zinc Left 2.96"L x .58"W x 1.12"H No Single .38" 1/4" x 20 threaded holes With heavy spring
