Draw Latches

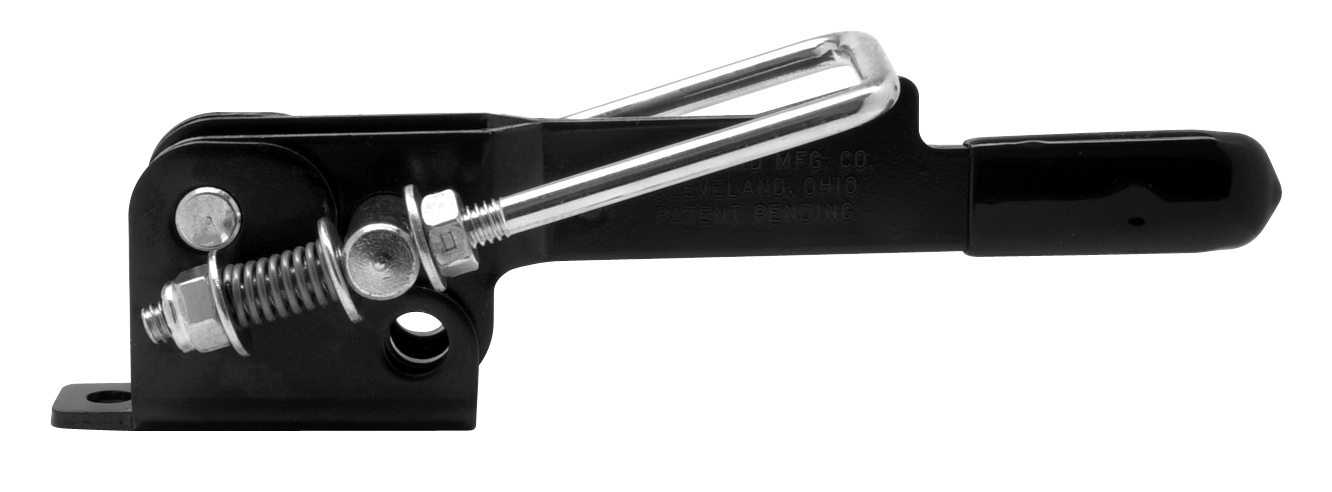

930-23 Draw Latch

  • Self-adjusting
  • Stainless steel tension springs to help maintain balanced load forces
  • Up to 7/16" U-bolt adjustment
  • Padlock eye provides for up to a 3/8" diameter padlock shackle
  • Hook not included
    • Catch plate options: 9674-B3 (Max load 1,500lbs), 7462 (Max load 1,000lbs), 166-AH (Max load 300lbs)

Product Specifications

Part Number Material Finish Sizes Mounting Locking Arm Style Download
930-23 Steel Black e-coat 8.11"L x 1.98"W x 1.97"H Holes Padlock Rubber
