Rotary Latches and Strikers

9D-400 Series Large Rotary Latch

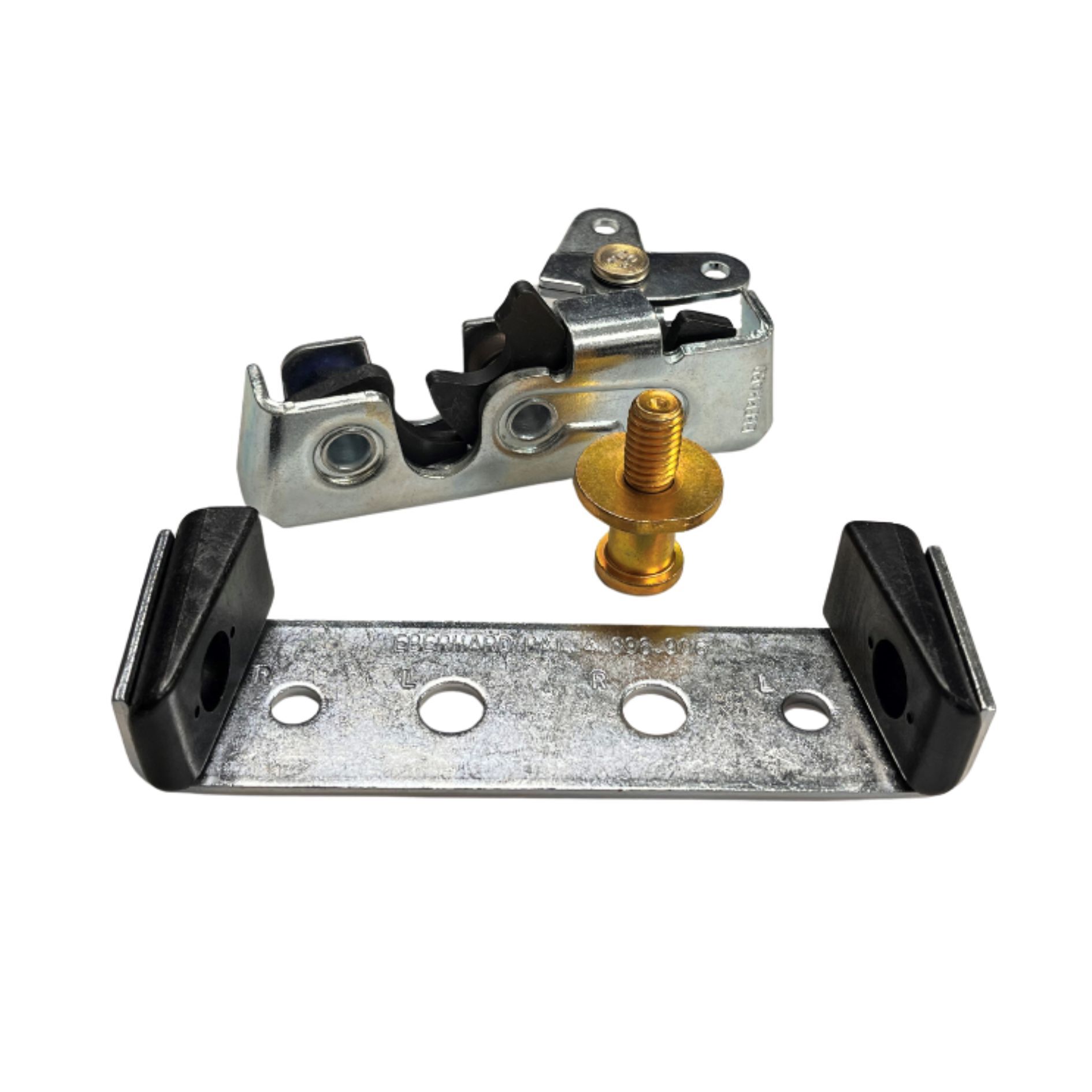

This FMVSS 206 rated series has a unique wedge design that improves door alignment and door sag to ensure better latch engagement. This is supplied as an assembly which includes the rotary latch and striker mounting bracket.

  • Right or left hand

  • Dual stage latching

  • To be used with a .55" diameter striker pin

  • Meets FMVSS 206 Passenger Restraint standards when used and tested with an Eberhard certified striker

Product Specifications

Part Number Finish Material Sizes Handed FMVSS 206 Rated Stages Extras Striker Sizes Mounting Download
9D-400-UL-25 Zinc Steel 4.85"L x 1.25"W x 1.88"H Left Yes Dual Rotary and striker bracket assembly .55" Rotary and Striker Bracket - 5/16" dia. bolts
9D-400-UR-25 Zinc Steel 4.85"L x 1.25"W x 1.88"H Right Yes Dual Rotary and striker bracket assembly .55" Rotary and Striker Bracket - 5/16" dia. bolts
