Rotary Latches and Strikers

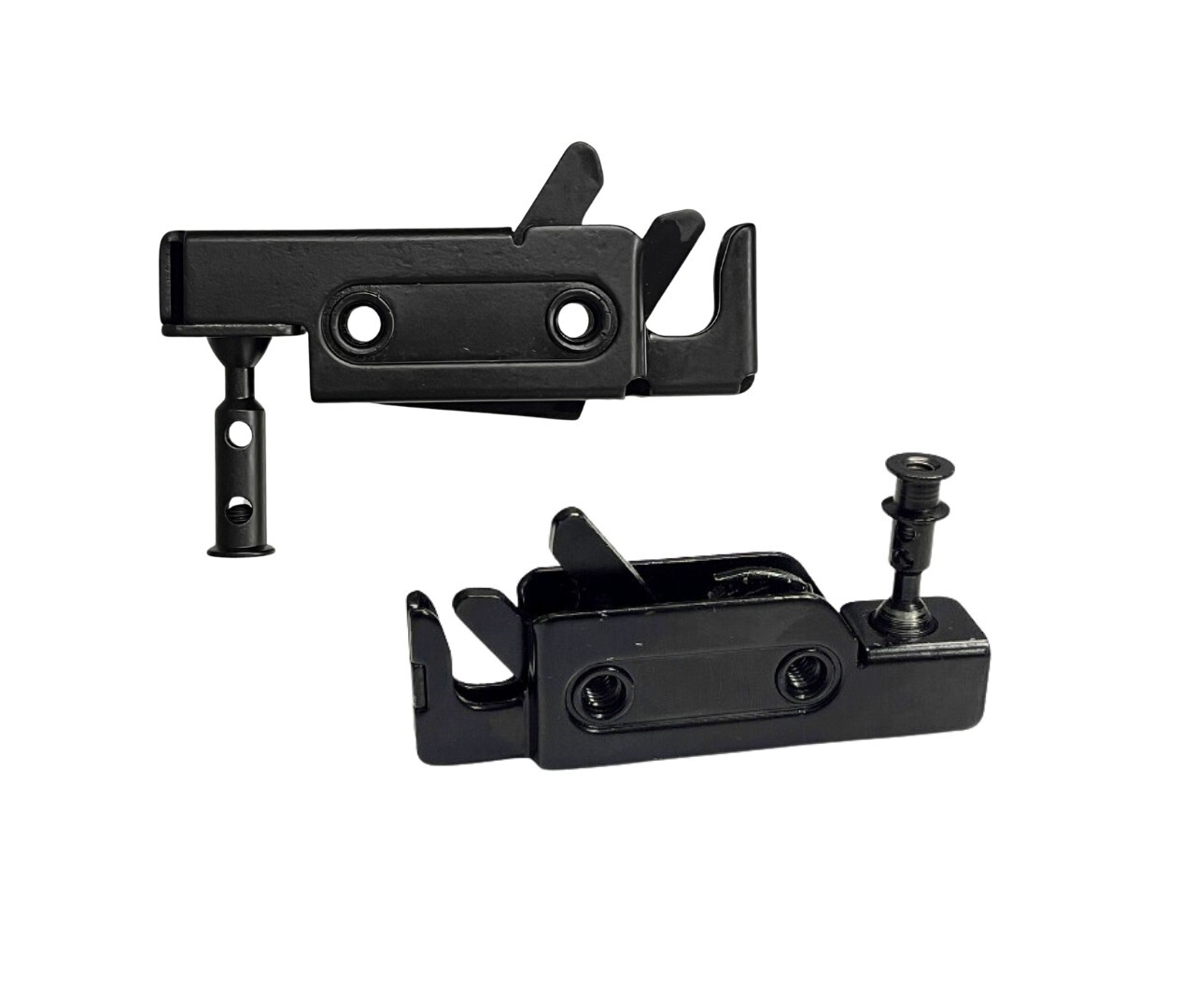

Load N Lock Joystick Mini Rotary Latch

  • Can be mounted as Right or left hand
  • Single stage latching
  • Multi-directional "joystick" and set screw actuator for remote operation
  • Rated to a max load of 750lbs
  • To be used with a .38" diameter striker pin

Product Specifications

Part Number Material Finish Sizes FMVSS 206 Rated Stages Striker Sizes Mounting Extras Joystick Download
LNL-77-00046 Steel Black e-coat 3.70"L x .75"W x 1.08"H No Single .38" 1/4" x 20 threaded holes With 360 degree joystick actuator Top mount
LNL-77-00146 Steel Black e-coat 3.70"L x .75"W x 1.08"H No Single .38" 1/4" x 20 threaded holes With 360 degree joystick actuator Bottom mount
