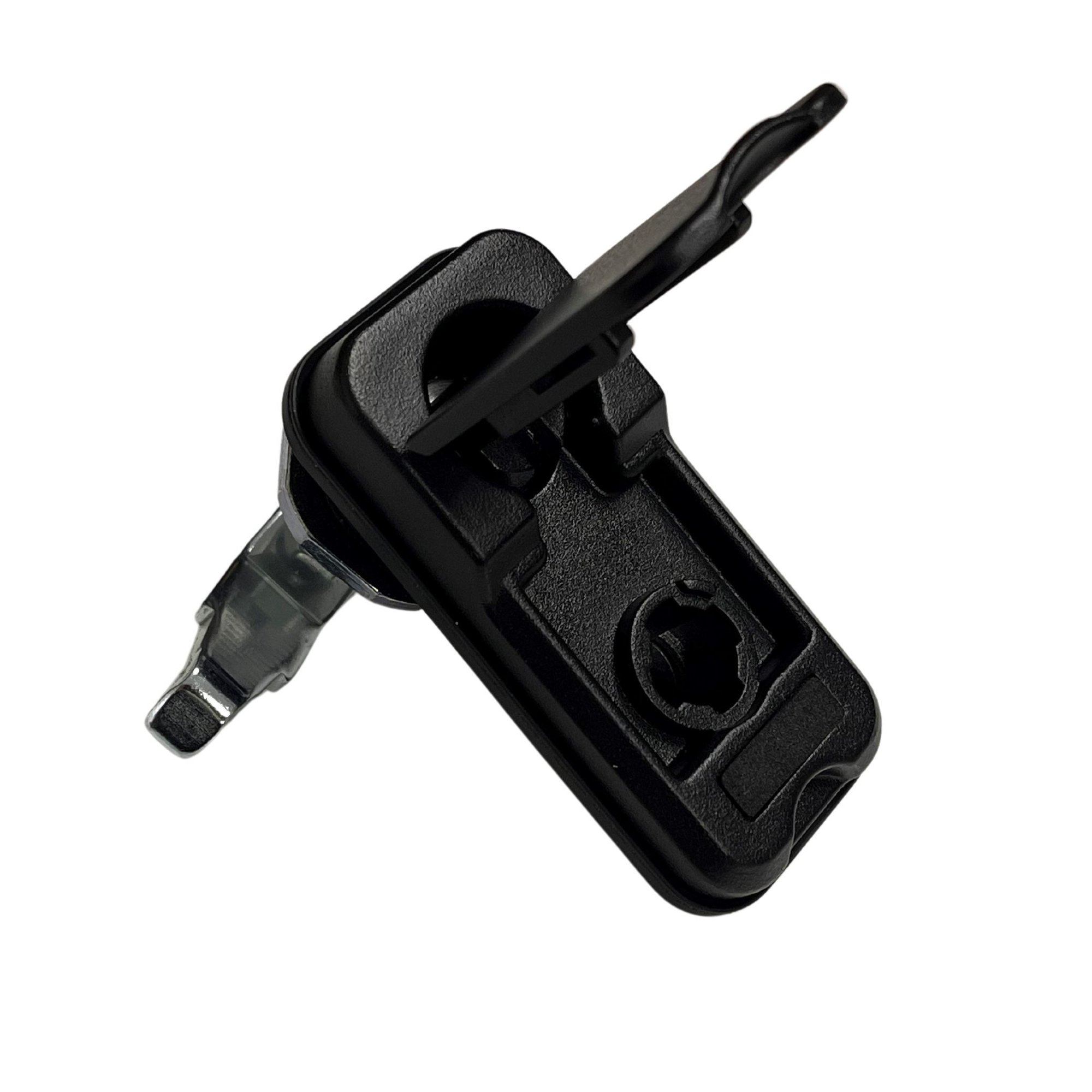

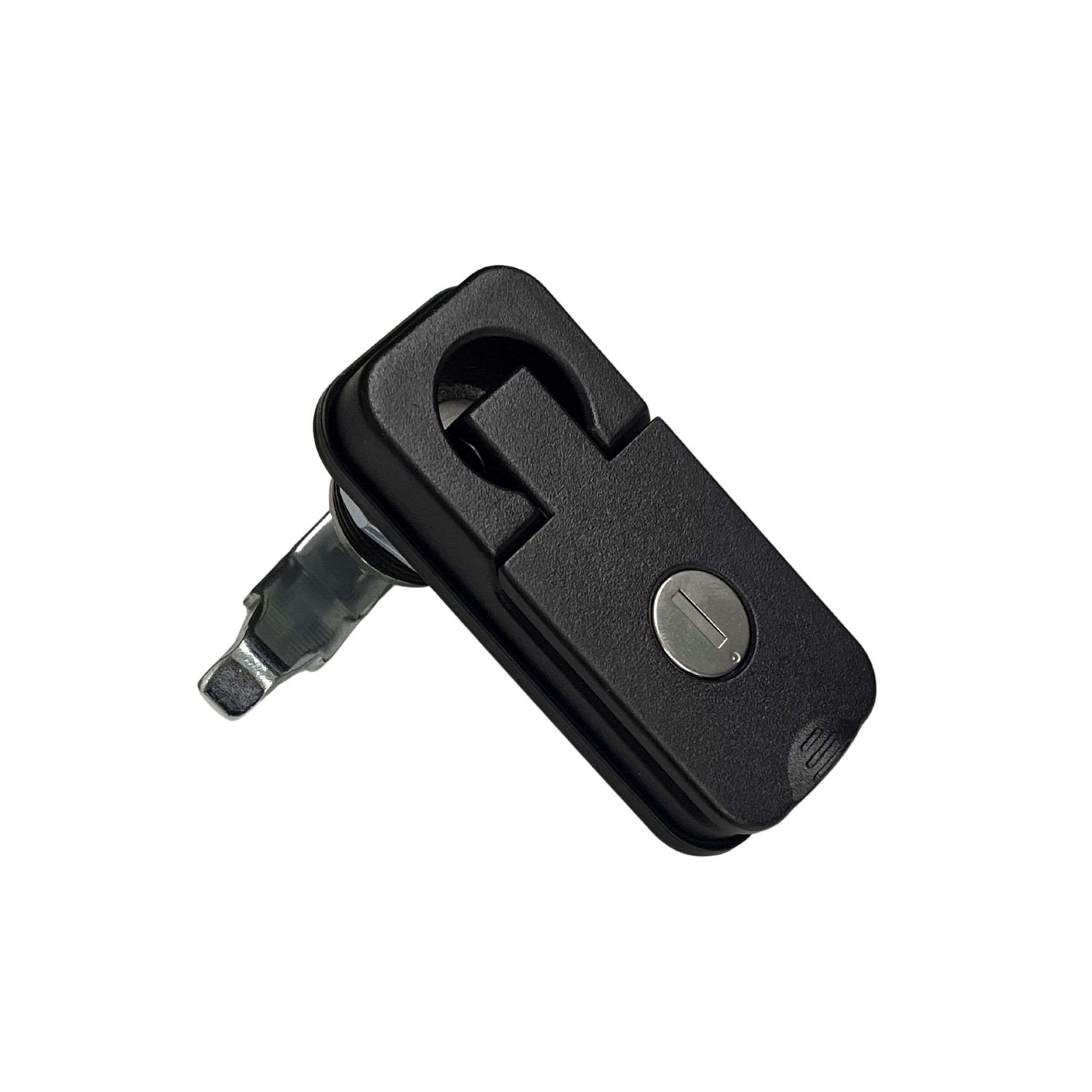

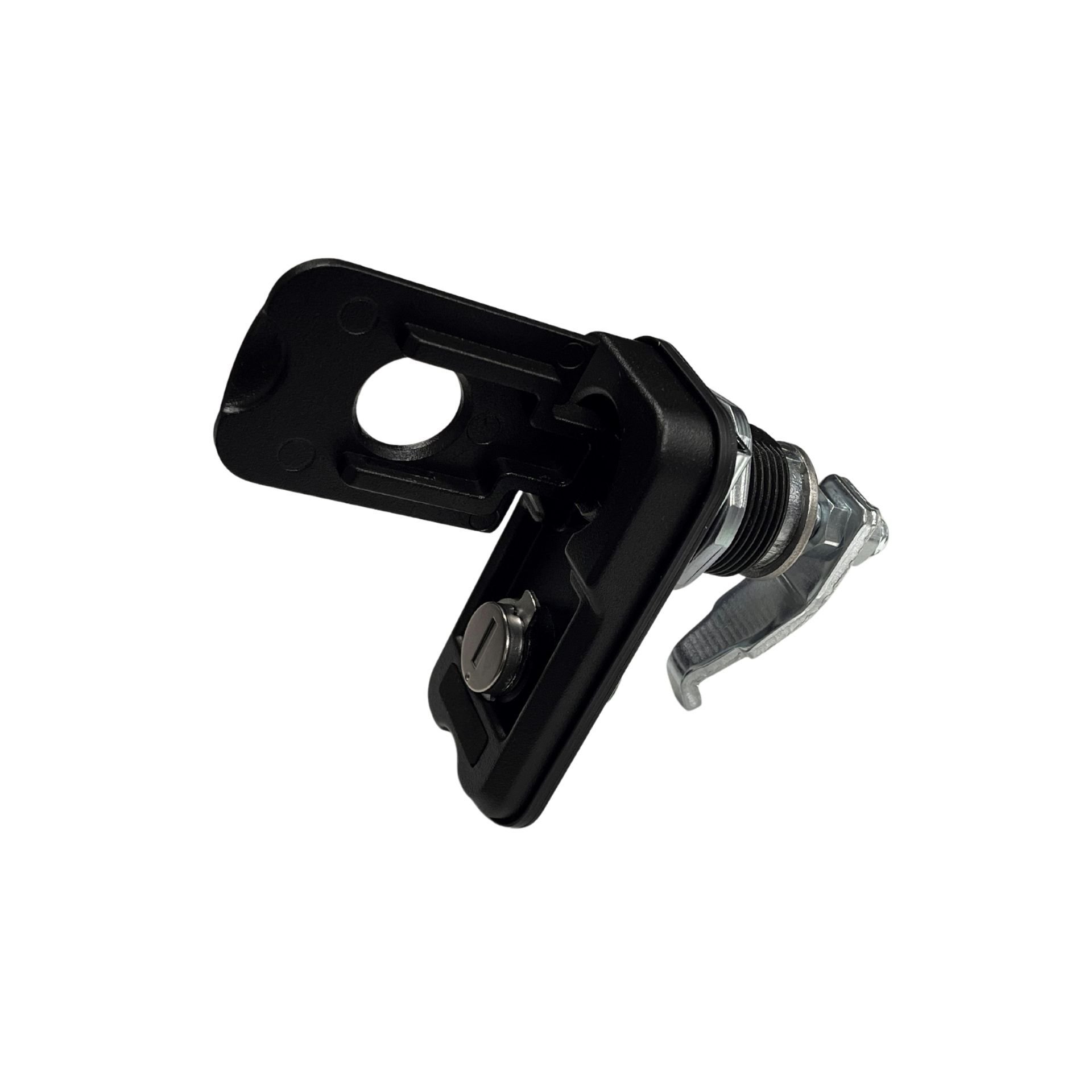

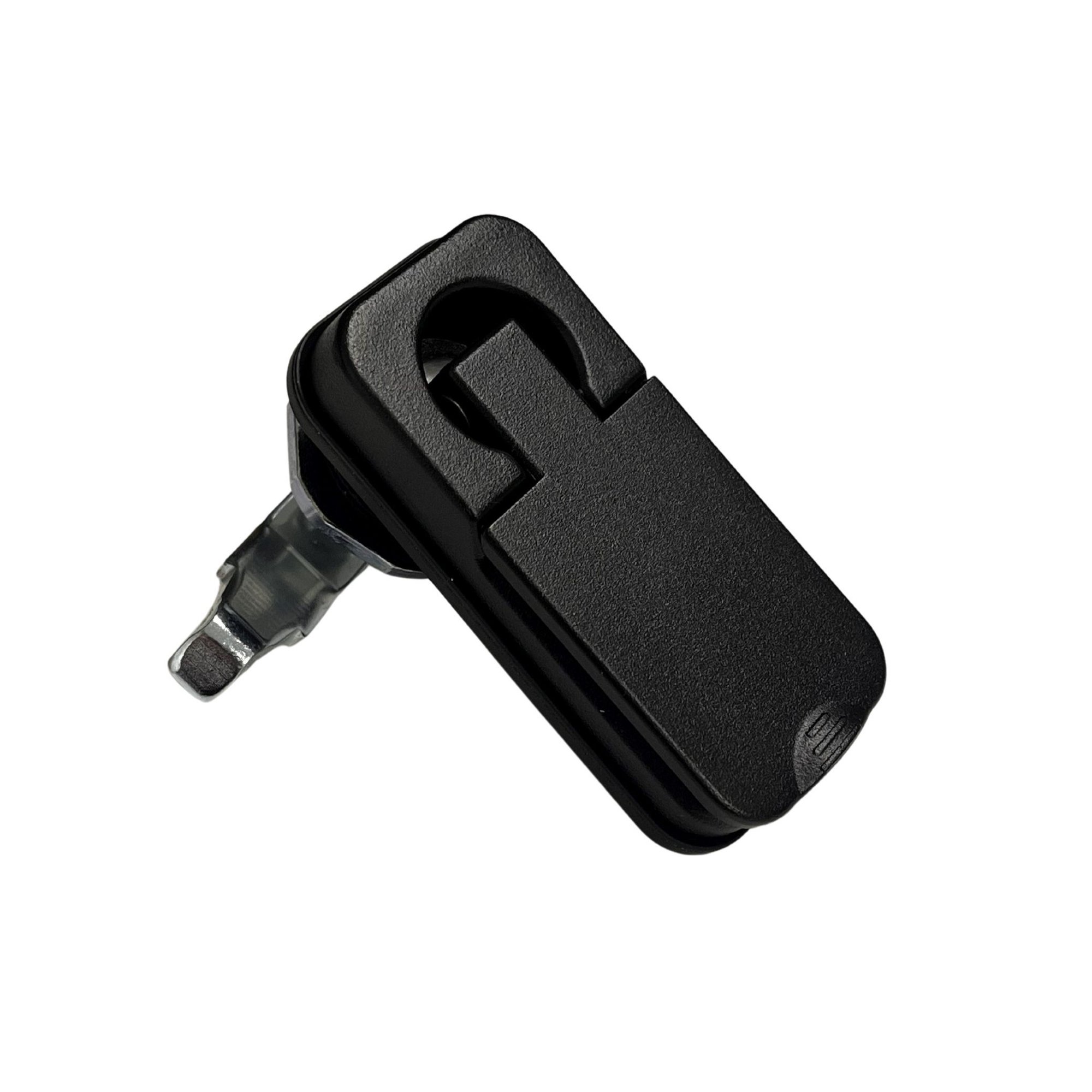

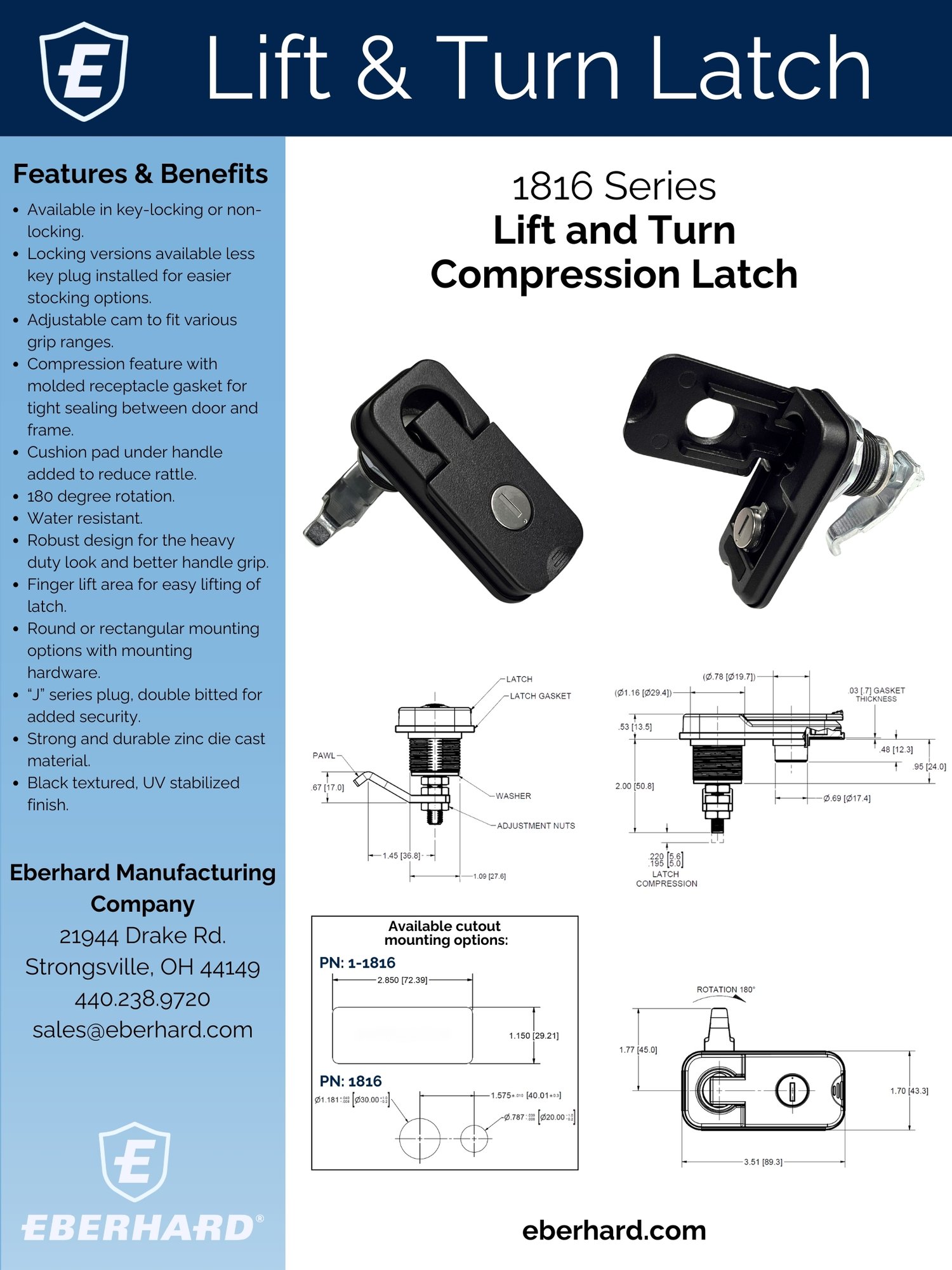

1816 Series Lift and Turn Compression Latch

Compression feature with molded receptacle gasket for tight sealing between door and frame
Round or rectangular mounting options with mounting hardware
Robust design for the heavy duty look and better handle grip
Adjustable cam to fit various grip ranges
Key locking, non-key locking, and key locking less cylinder versions available
Water resistant
Cushion pad under handle added to reduce rattle

Part Number	Material	Finish	Sizes	Mount Style	Locking

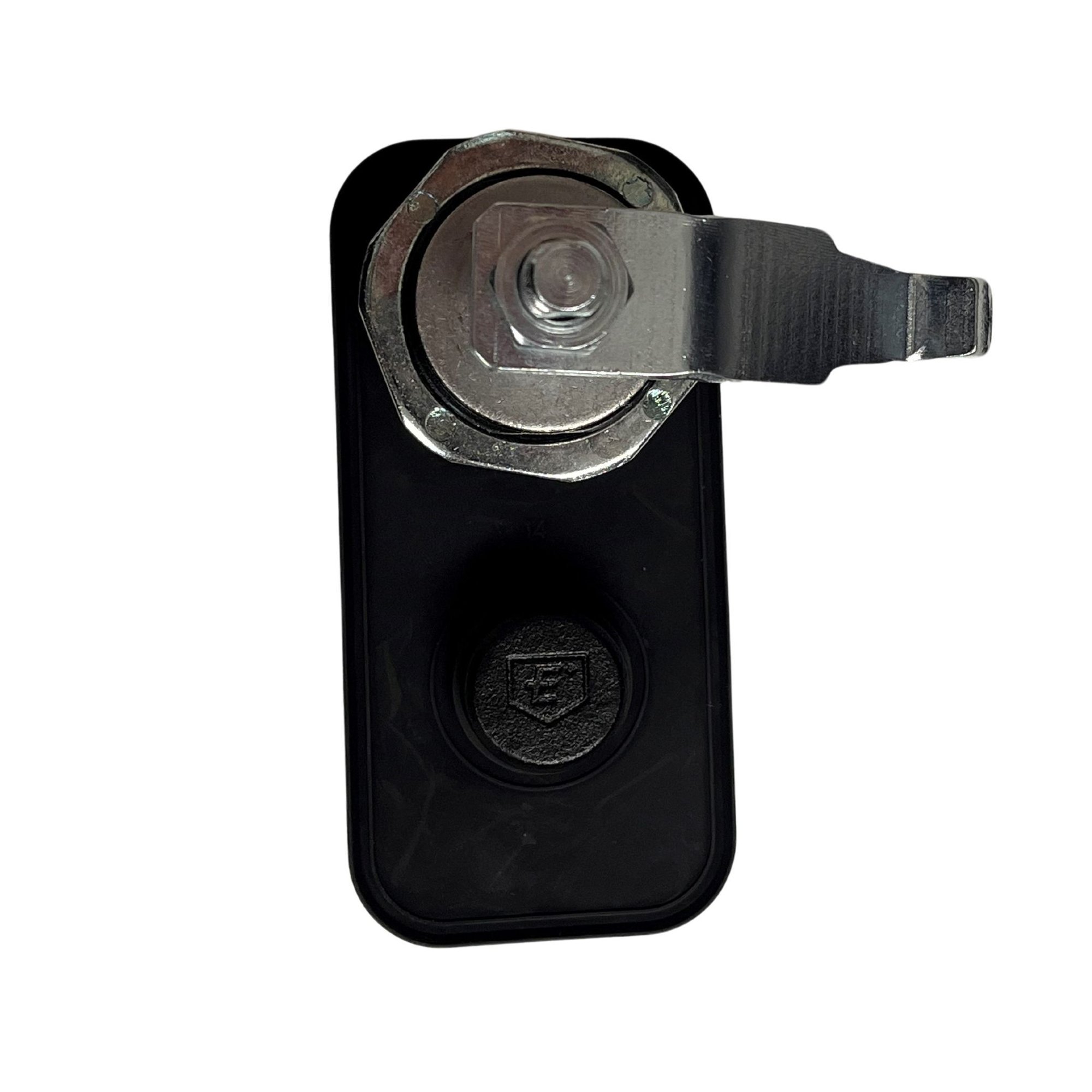

1816-K-42	Zinc Die-Cast	Black	3.51"L x 2.53"W x 1.70"H	Round	Key
1816-NL-42	Zinc Die-Cast	Black	3.51"L x 2.53"W x 1.70"H	Round	No
1816-KLC-42	Zinc Die-Cast	Black	3.51"L x 2.53"W x 1.70"H	Round	Key, Less cylinder

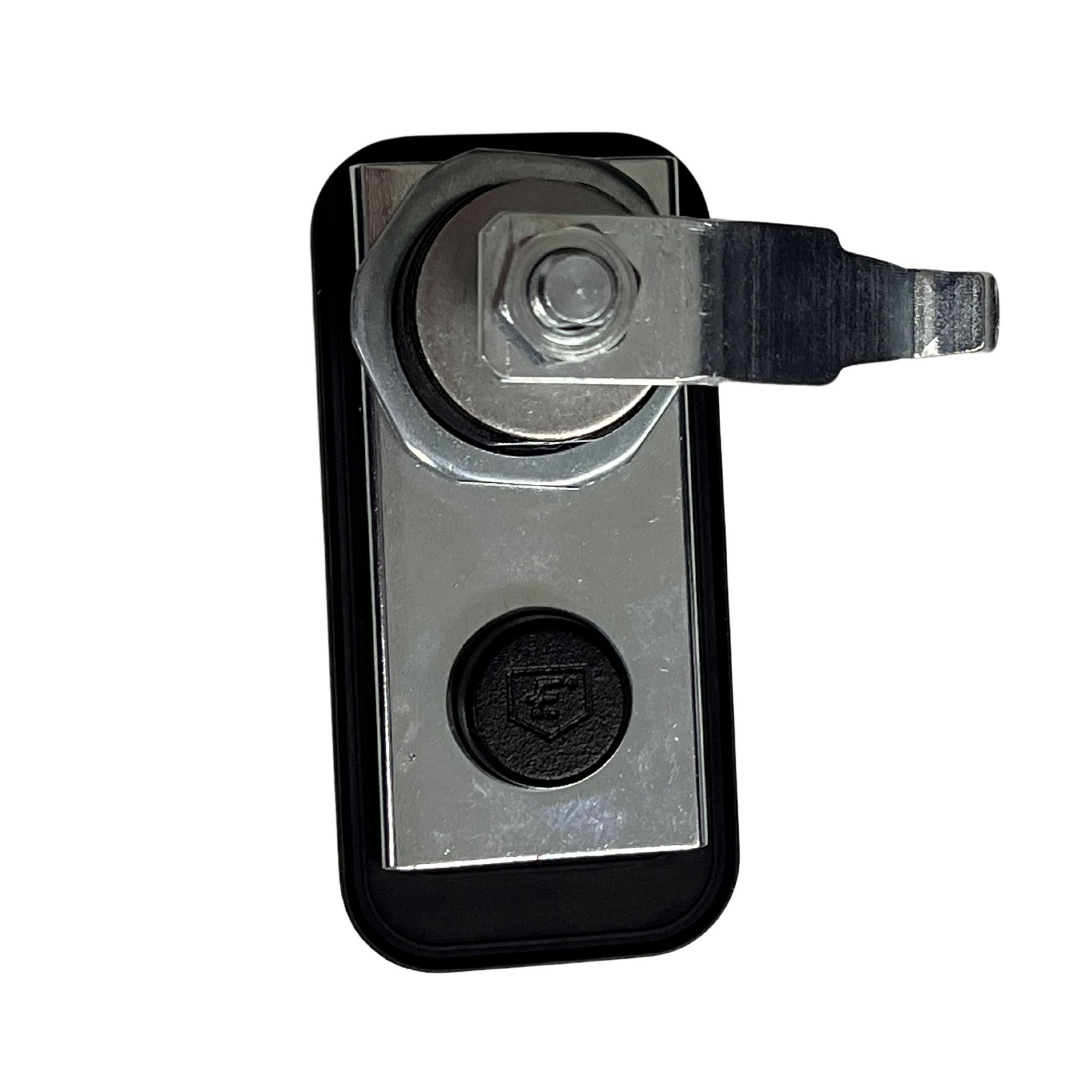

1-1816-K-42	Zinc Die-Cast	Black	3.51"L x 2.53"W x 1.70"H	Rectangular	Key
1-1816-NL-42	Zinc Die-Cast	Black	3.51"L x 2.53"W x 1.70"H	Rectangular	No
1-1816-KLC-42	Zinc Die-Cast	Black	3.51"L x 2.53"W x 1.70"H	Rectangular	Key, Less cylinder
