Trigger/Lift and Turn Latches

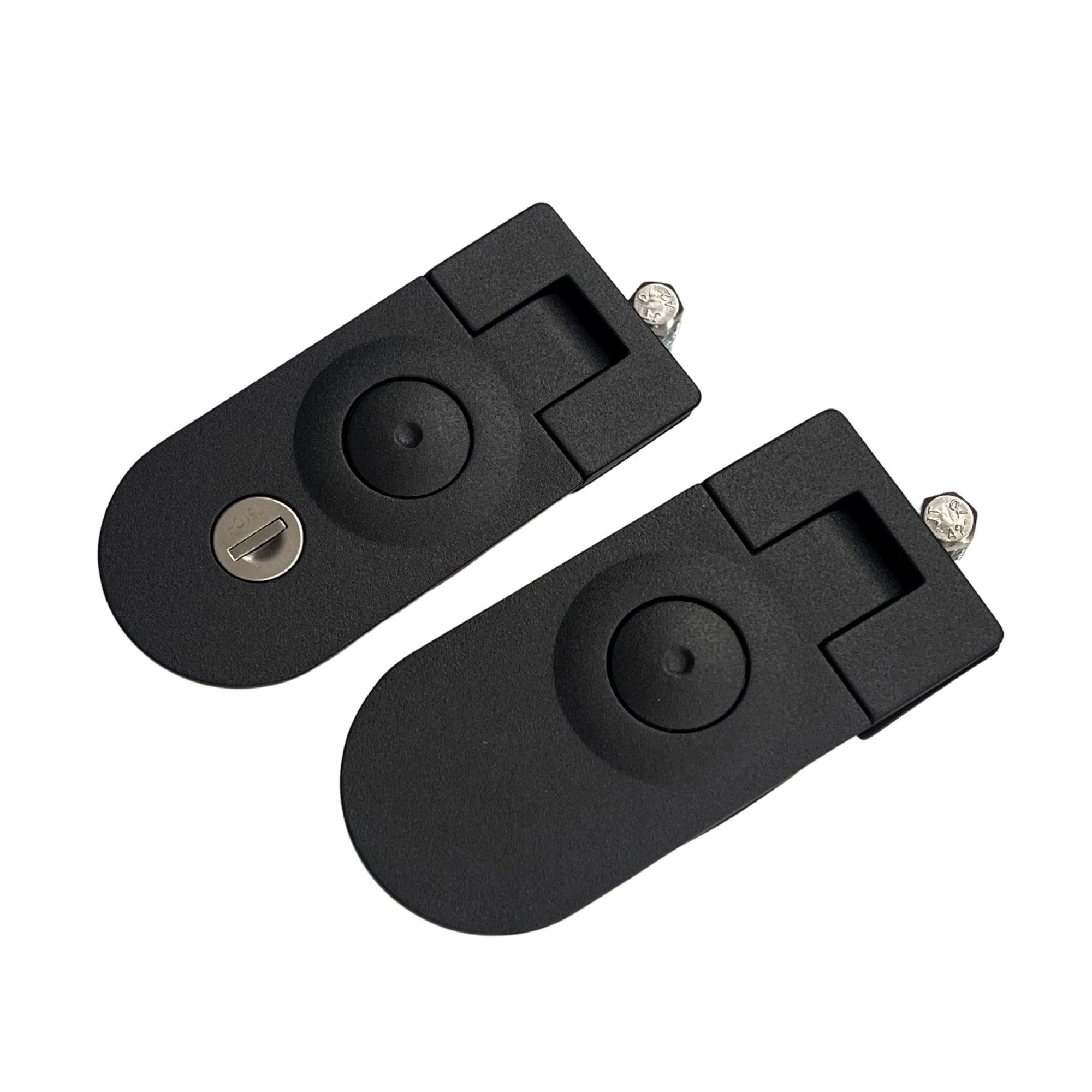

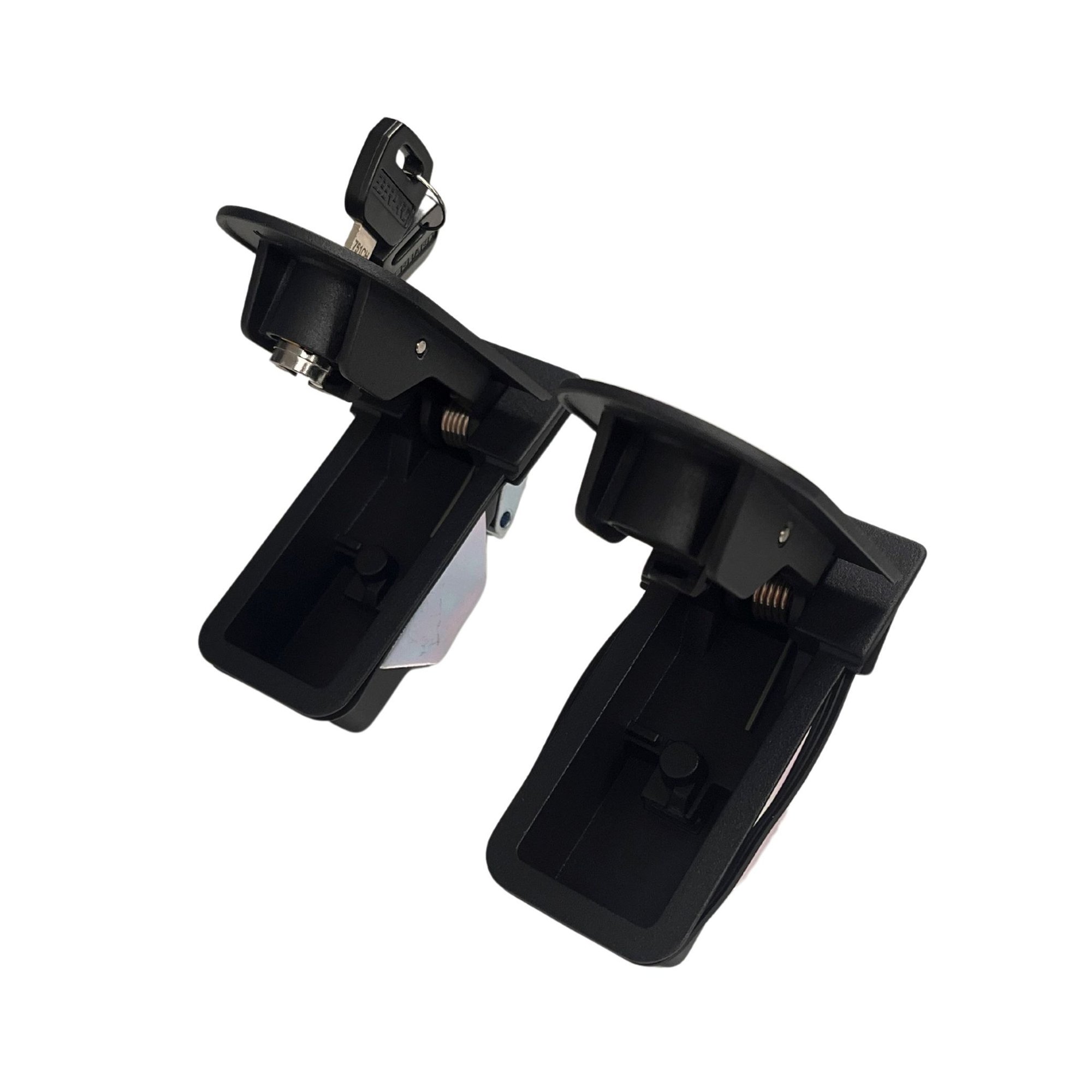

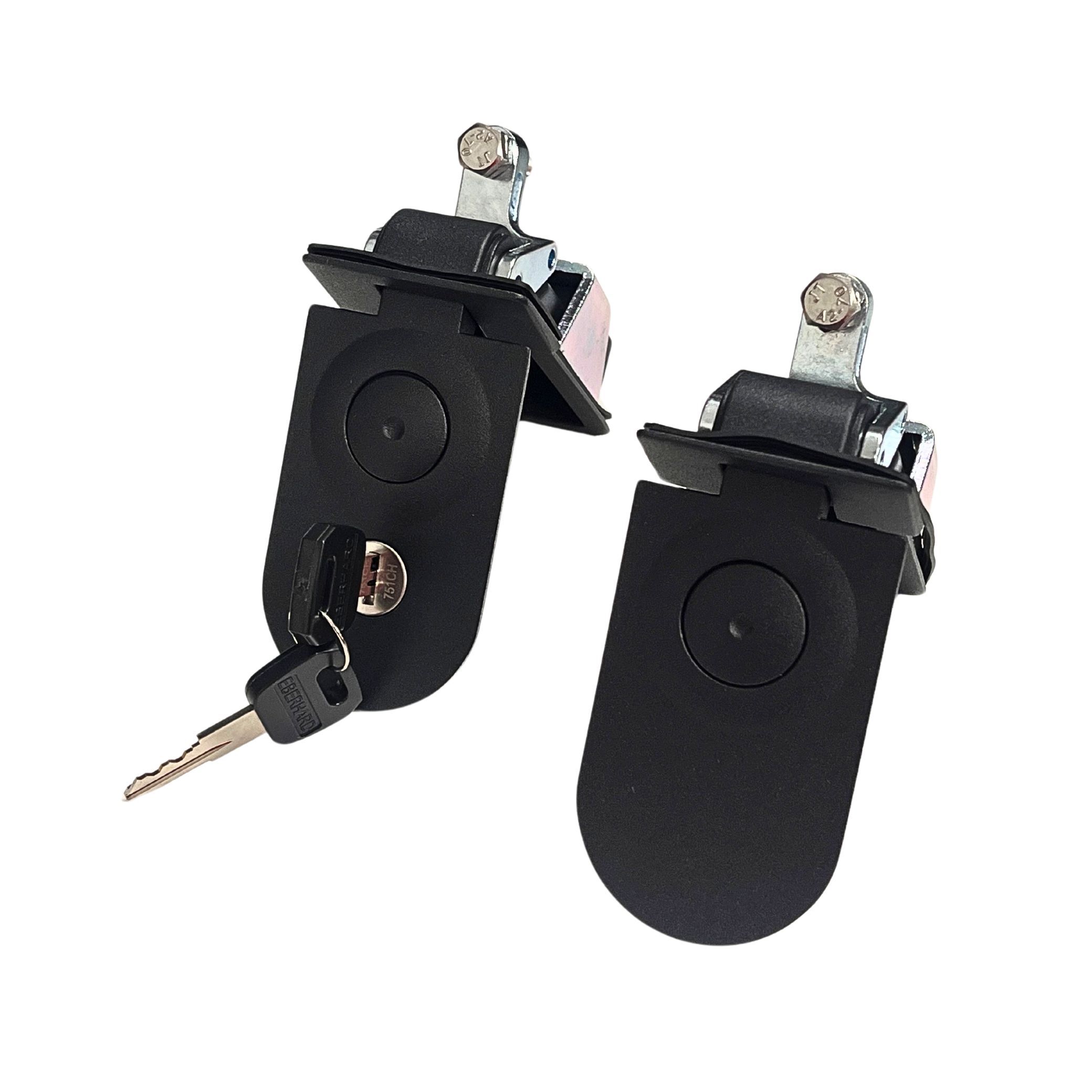

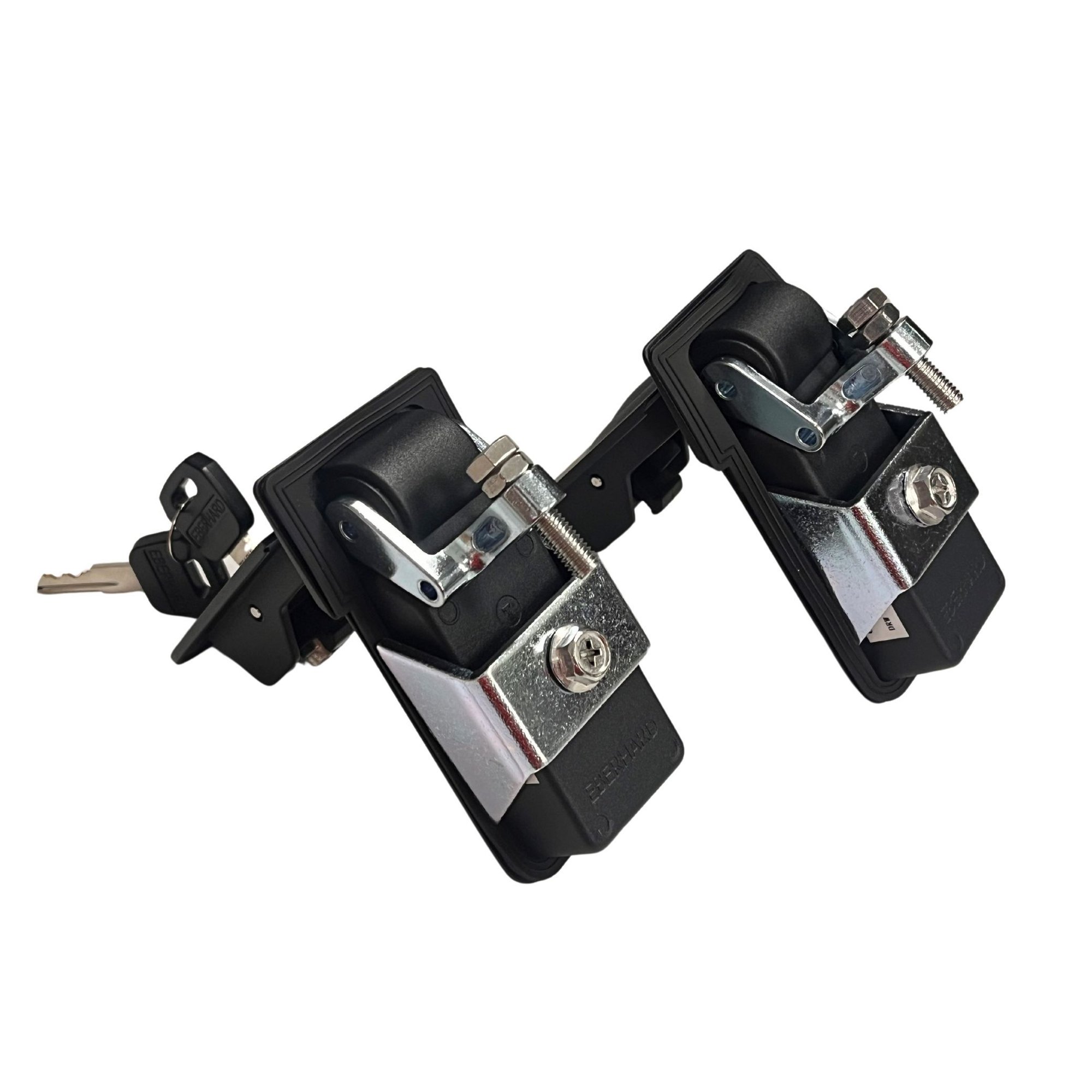

800 Series Compression Trigger Latch
Product Specifications
| Part Number | Material | Finish | Locking | Dimension A | Dimension B | Dimension C | Dimension D | Water Resistant | Download |
|---|---|---|---|---|---|---|---|---|---|
| 834RW | Die Cast | Black | No | 0 | 0.55 | 1.58 | 0.79 | Yes | |
| 835RW | Die-Cast | Black | No | 0.35 | 1.14 | 2.21 | 1.42 | ||
| 836RW | Die-Cast | Black | No | 0.98 | 1.77 | 2.84 | 2.05 | ||
| 837RW | Die-Cast | Black | No | 1.45 | 2.24 | 3.27 | 2.48 | ||
| 834RW-K | Die Cast | Black | Key | 0 | 0.55 | 1.58 | 0.79 | ||
| 835RW-K | Die-Cast | Black | Key | 0.35 | 1.14 | 2.21 | 1.42 | ||
| 836RW-K | Die-Cast | Black | Key | 0.98 | 1.77 | 2.84 | 2.05 | ||
| 837RW-K | Die-Cast | Black | Key | 1.45 | 2.24 | 3.27 | 2.48 | ||
| 1-836-507K-BX36-04 | Die-Cast | Chrome | Key | 0.98 | 1.77 | 2.84 | 2.05 |
